Motorised DN50 Ball Valve

$200.00

Please refer to our product specification for more information.

CTF-001 specification 2024

Buying in bulk? Contact us for a quote.
SKU: hw-vb-007 Categories: ,

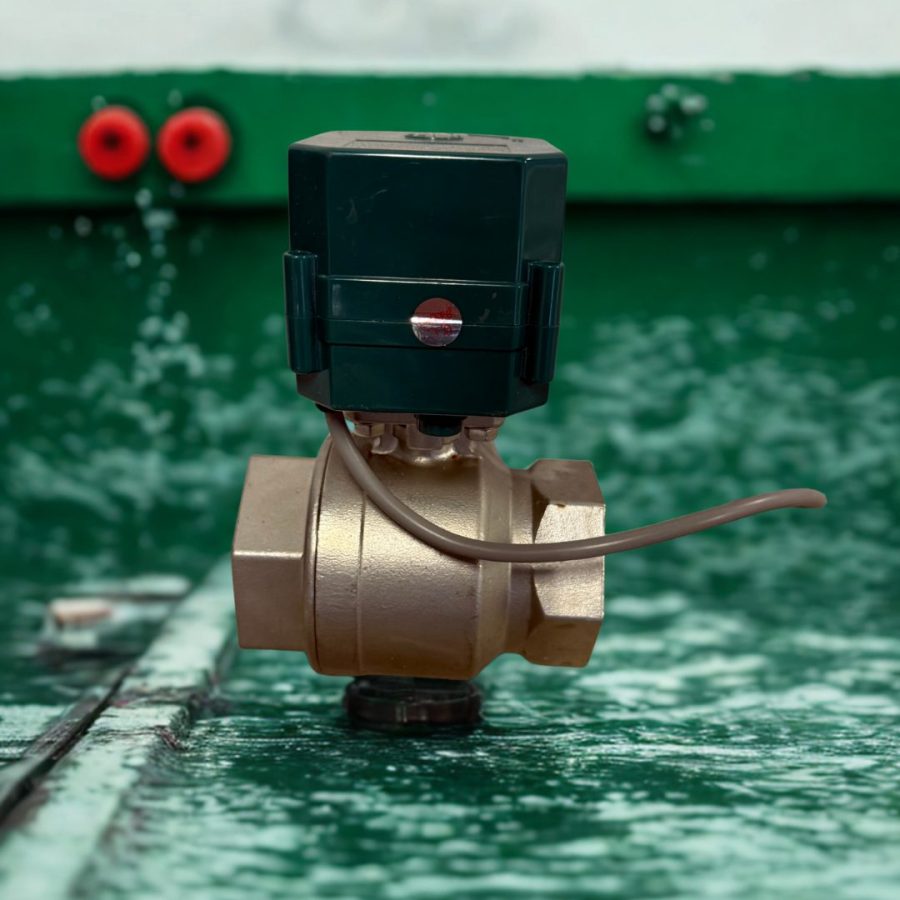

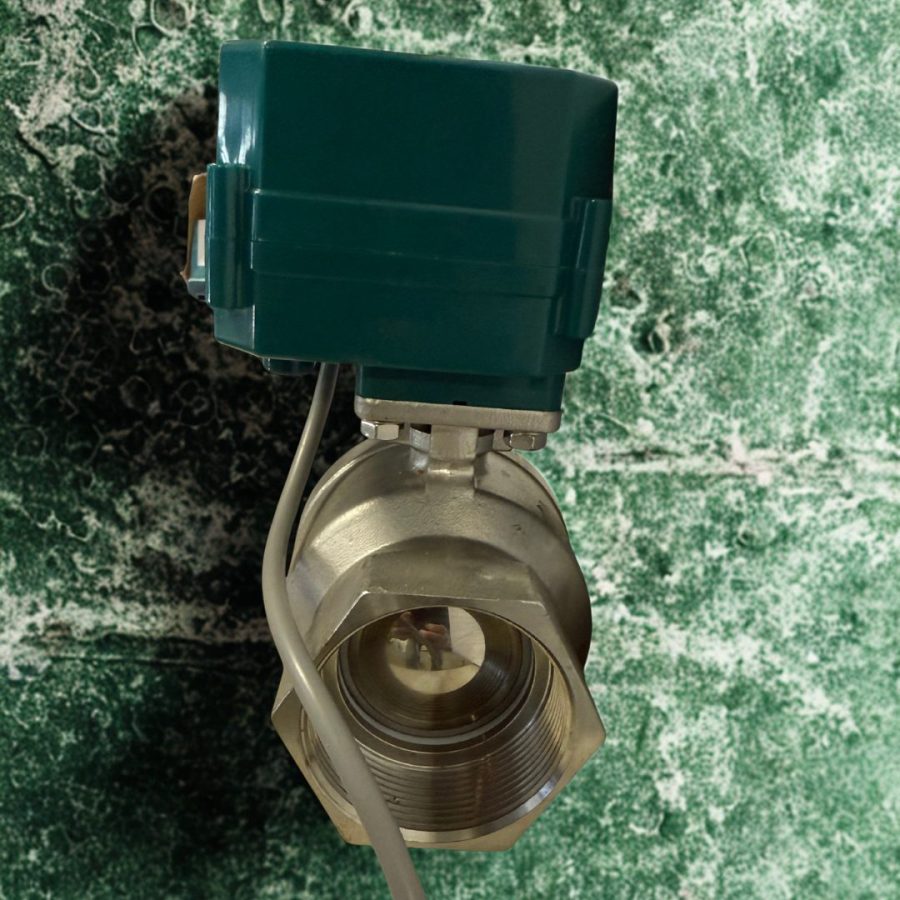

CTF-001 9-35 VDC Motorised DN50 Ball Valve with Manual Override 5-wire

  • Material – SS304
  • With Manual Override
  • Used where solenoid valves cannot be used

Available models: CRO4S, CRO1S

Product Features

1. Simple shape, small size, all-metal gear driving, reliable performance, large torque, is the interface between civil and industrial-grade valve as intermediate products, the valve ball sealed structure with a float, no dripping, and suitable for heavy dirt and long-term non-action occasions.
2. Electrical and mechanical double limit, accurate positioning, high consistency.
3. The connection of the actuator and valve belongs to ISO5211 standard, Flange type F03 and F05 convenience for the user-selectable valve body. Offering a stainless steel ball valve, IP65 Protection class, can be used in a relatively humid environment.
4. Position indicator and manual override function ( Emergency switch for sudden power failure or accident emergency )

Valve Spec



Weight 2.5 kg
Dimensions 15 × 10 × 10 cm
Size

25mm, 50mm
